ToolStripStatusLabel

In a ScriptoForm, the Microsoft .NET ToolStripStatusLabel class is a control that can be embedded into a StatusStrip control and is used to display status information or progress to the user while the ScriptoForm is running. A ToolStripStatusLabel can display text, an icon, or both.

Note

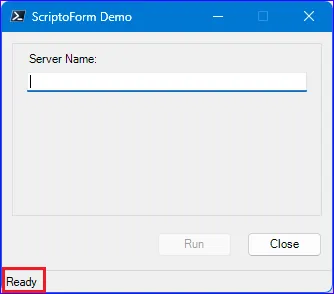

Every new ScriptoForm includes a StatusStrip ($StatusStripMain) control with a nested ToolStripStatusLabel ($ToolStripStatusLabelMain) child control. The $ToolStripStatusLabelMain control should be used to display status information to the user and updated at runtime as actions are performed by the ScriptoForm. By default, this control displays: Ready

Usage

When a new ScriptoForm is built using the New-SADScriptoFormProject function, a default ToolStripStatusLabel control ($ToolStripStatusLabelMain) is provisioned in the script. A ToolStripStatusLabel must be embedded in a StatusStrip object and in the case of a default ScriptoForm it is embedded in the $StatusStripMain object. However, an additional ToolStripStatusLabel may need to be created for use with each secondary Form added to the ScriptoForm.

The steps needed to implement a ToolStripStatusLabel control with a ScriptoForm include:

• Instantiate a ToolStripStatusLabel object in the Controls region.
  Suggested name format: $ToolStripStatusLabelName
• Add the ToolStripStatusLabel object to StatusStrip control in the Forms region.
• Assign the Text property to the ToolStripStatusLabel object with the $FormMain_Shown event handler in the Handlers region. An event handler it typically used for this process to allow for possible state changes while the script is loading and connecting to remote resources. For example the text “Connecting to VMware vCenter instance…” may need to displayed while the script is initializing prior to setting it to “Ready”.

Examples

1. Instantiate a new System.Windows.Forms.StatusStrip object:

   Controls Regions

   $ToolStripStatusLabelMain = New-Object -TypeName System.Windows.Forms.ToolStripStatusLabel

2. Add a ToolStripStatusLabel control to the StatusStrip object:

   Forms Region | $ShowMainForm

   $StatusStripMain.SizingGrip = $false
   $StatusStripMain.Font = New-Object -TypeName System.Drawing.Font("MS Sans Serif",8)
   [void]$StatusStripMain.Items.Add($ToolStripStatusLabelMain)
   $FormMain.Controls.Add($StatusStripMain)

3. Add the text property value to the ToolStripStatusLabel object:

   Handlers Region | $FormMain_Shown

    $FormMain_Shown =
    {
        $ToolStripStatusLabelMain.Text = "Ready"
        $StatusStripMain.Update()
        $FormMain.Activate()
    }

The Text property value of a ToolStripStatusLabel object can be updated when the state of the ScriptoForm changes. For example when the user clicks the “Run” button, the property can be updated to indicate a long running process is executing. When the process has completed, the property can be set back to the default Ready value. The most effecient way to implement these changes is by using the Invoke-FormAction helper function.

The steps needed to update the text of a ToolStripStatusLabel control include:

• Set the Text property of the ToolStripStatusLabel object with the StatusText parameter of the Invoke-FormAction helper function. If not provided, this will default to Working...please wait.
• Optionally, update the Text property of the ToolStripStatusLabel object at different points within the Action parameter code block of the Invoke-FormAction helper function to provide more granualar feedback to the user as actions are being performed.
• The Text property of the ToolStripStatusLabel object will automatically be set back to the default value (“Ready”) after the actions have completed by the Invoke-FormAction helper function.

1. Set the Text property of the ToolStripStatusLabel object using the StatusText parameter:

   Handlers Regions | $ButtonRun_Click

   $ButtonRun_Click =
   {
       Invoke-FormAction -Action {
           try
           {
               Start-Sleep -Seconds 2
               [void][System.Windows.Forms.MessageBox]::Show(
                   "Action complete.",
                   "Results",
                   [System.Windows.Forms.MessageBoxButtons]::OK,
                   [System.Windows.Forms.MessageBoxIcon]::Information
               )
           }
           catch
           {
               [void][System.Windows.Forms.MessageBox]::Show(
                   $PSItem.Exception.Message + "`n`nPlease contact $SUPPORT_CONTACT for technical support.",
                   "Exception",
                   [System.Windows.Forms.MessageBoxButtons]::OK,
                   [System.Windows.Forms.MessageBoxIcon]::Warning
               )
           }
       } -Reset {
           $TextBoxServerName.Clear()
           $TextBoxServerName.Focus()
       } -StatusText "Actions running...please wait"
   }

2. Optionally, set the Text property of the ToolStripStatusLabel object within the code block of the Action parameter as needed.

   Functions Regions | Invoke-FormAction

   try
       {
           Start-Sleep -Seconds 5
           $ToolStripStatusLabelMain.Text = "Beginning sleep phase 2..."
           $StatusStripMain.Update()
           Start-Sleep -Seconds 5
           [void][System.Windows.Forms.MessageBox]::Show(
               "Action complete.",
               "Results",
               [System.Windows.Forms.MessageBoxButtons]::OK,
               [System.Windows.Forms.MessageBoxIcon]::Information
           )
       }

3. The Text property of the ToolStripStatusLabel object will automatically be set back to the default state:

   Functions Regions | Invoke-FormAction

   function Invoke-FormAction
   {
       param
       (
           [Parameter(Mandatory, Position = 0)] [ScriptBlock]$Action,
           [Parameter(Position = 1)] [ScriptBlock]$Reset = $null,
           [Parameter(Position = 2)] [String]$StatusText = "Working...please wait"
       )

       try
       {
           $ToolStripStatusLabelMain.Text = $StatusText
           $FormMain.Controls | Where-Object {$PSItem -isnot [System.Windows.Forms.StatusStrip]} | ForEach-Object {$PSItem.Enabled = $false}
           $FormMain.Cursor = [System.Windows.Forms.Cursors]::WaitCursor
           [System.Windows.Forms.Application]::DoEvents()
           Invoke-Command -ScriptBlock $Action
       }

       finally
       {
           $FormMain.Controls | ForEach-Object {$PSItem.Enabled = $true}
           $FormMain.ResetCursor()
           if ($Reset) {Invoke-Command -ScriptBlock $Reset}
           $ToolStripStatusLabelMain.Text = "Ready"
           $StatusStripMain.Update()
       }
   }

References

ToolStripStatusLabel Class (System.Windows.Forms) | Microsoft Learn
