TextBox

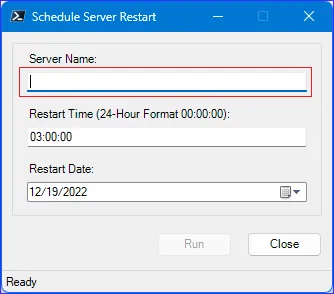

In a ScriptoForm, the Microsoft .NET TextBox class is a control that allows the user to provide text or numerical data to the underlying script.

Usage

In the ScriptoForm PowerShell script file, a TextBox control should be instantiated in the Controls region and then defined within the Forms script block. A TextBox is usually paired with a matching Label control. If using the ScriptoForm VS Code snippets, the ScriptoForm Controls: Label & TextBox snippet can be used to instantiate this control pair and the ScriptoForm Properties: Label & TextBox snippet can be used to assign a default set of properties to them. By convention, this control pair should be nested in the $GroupBoxMain GroupBox container.

The steps needed to implement a TextBox control with a ScriptoForm include:

• Instantiate a TextBox object and an associated Label object in the Controls region.
  Suggested name format: $LabelName | $TextBoxName
• Assign the required and any optional properties to the TextBox object in the Forms region.
• Assign Event Handlers to the TextBox object in the Forms region.
• Add the control pair to a GroupBox object in the Forms region.
• Define event handlers for the TextBox with script blocks in the Handlers region, as needed.
• Utilize the value of the TextBox Text field with appropriate event handlers in the Handlers region, as needed.

Examples

1. Instantiate a new System.Windows.Forms.TextBox and System.Windows.Forms.Label control pair:

   Controls Region

   $LabelEmail = New-Object -TypeName System.Windows.Forms.Label
   $TextBoxEmail = New-Object -TypeName System.Windows.Forms.TextBox

2. Assign properties to the pair, an event handler listener to the ComboBox object, and add the pair to the GroupBox object:

   Forms Region | $ShowMainForm

   $LabelEmail.Location = New-Object -TypeName System.Drawing.Point(15,15)
   $LabelEmail.AutoSize = $true
   $LabelEmail.Text = "Name:"
   $GroupBoxMain.Controls.Add($LabelEmail)

   $TextBoxEmail.Location = New-Object -TypeName System.Drawing.Point(15,35)
   $TextBoxEmail.Size = New-Object -TypeName System.Drawing.Size(($FormWidth - 50),20)
   $TextBoxEmail.TabIndex = 0
   $TextBoxEmail.Add_TextChanged($TextBoxEmail_TextChanged)
   $TextBoxEmail.Add_GotFocus($TextBoxEmail_GotFocus)
   $GroupBoxMain.Controls.Add($TextBoxEmail)

3. Set the CharacterCasing property on the TextBox object:

   Forms Region | $ShowMainForm

   $TextBoxEmail.CharacterCasing = [System.Windows.Forms.CharacterCasing]::Lower

4. Set the MaxLength property on the TextBox object:

   Forms Region | $ShowMainForm

   $TextBoxEmail.MaxLength = 25

5. Create the $TextBoxEmail_TextChanged event handler for the TextBox object:

   Handlers Region

   $TextBoxEmail_TextChanged =
   {
       if ($TextBoxName.TextLength -eq 0)
       {
           $ErrorProviderMain.Clear()
           $ButtonRun.Enabled = $false
       }
       else
       {
           $ErrorProviderMain.Clear()
           $ButtonRun.Enabled = $true
       }
   }

6. Create the $TextBoxEmail_GotFocus event handler for the TextBox object:

   Handlers Region

   $TextBoxEmail_GotFocus =
   {
       if ($TextBoxEmail.TextLength -ne 0)
       {
           try
           {
               $EmailDomainName = (New-Object -TypeName MailAddress($TextBoxEmail.Text)).Host
               $TextBoxEmail.SelectionStart = 0
               $TextBoxEmail.SelectionLength = ($TextBoxEmail.TextLength - ($EmailDomainName.Length + 1))
           }
           catch {$TextBoxEmail.SelectionStart = 0}
       }
   }

7. Use the Text property of TextBox object to retrive the current value:

   Handlers Region

   SendEmail($TextBoxEmail.Text)

References

TextBox Class (System.Windows.Forms) | Microsoft Learn
