GroupBox

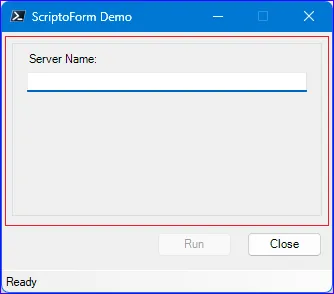

In a ScriptoForm, the Microsoft .NET GroupBox class is a control that displays a visual frame around a group of controls on a Form. It does not provide any functionality to the Form or script but rather, in the context of a ScriptoForm, is used for aesthetic purposes. A GroupBox can include an optional caption (using the text property), which appears at the top left corner of the control when set. By design, a control must be added to the GroupBox, and not the main Form, for it to appear within the GroupBox. The GroupBox itself, however, is added to the main Form.

Usage

When a new ScriptoForm is built using the New-SADScriptoFormProject function, an empty GroupBox ($GroupBoxMain) is provisioned in the script. The default “Run” and “Close” buttons are created outside of $GroupBoxMain and are added to $FormMain directly. When adding additional controls to a ScriptoForm it is generally recommended to add them to the $GroupBoxMain control. However, an additional GroupBox may need to be created for use with each secondary Form added to the ScriptoForm.

The steps needed to implement a GroupBox control with a ScriptoForm include:

• Instantiate a GroupBox object in the Controls region.
  Suggested name format: $GroupBoxName
• Assign the required properties to the GroupBox object in the Forms region.
• Add the GroupBox object to a Form object in the Forms region.
• Add controls to the GroupBox object in the Forms region, as needed.

Examples

1. Instantiate a new System.Windows.Forms.GroupBox object:

   Controls Regions

   $GroupBoxMain = New-Object -TypeName System.Windows.Forms.GroupBox

2. Assign properties to the GroupBox object and add it to the Form object:

   Forms Region | $ShowMainForm

   $GroupBoxMain.Location = New-Object -TypeName System.Drawing.Point(10,5)
   $GroupBoxMain.Size = New-Object -TypeName System.Drawing.Size(($FormWidth - 20),($FormHeight - 80))
   $FormMain.Controls.Add($GroupBoxMain)

3. Add controls to the GroupBox object:

   Forms Region | $ShowMainForm

   $LabelServerName.Location = New-Object -TypeName System.Drawing.Point(15,15)
   $LabelServerName.AutoSize = $true
   $LabelServerName.Text = "Server Name:"
   $GroupBoxMain.Controls.Add($LabelServerName)

References

GroupBox Class (System.Windows.Forms) | Microsoft Learn
