Label

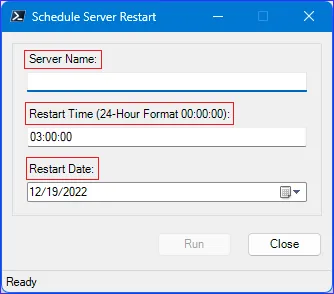

In a ScriptoForm, the Microsoft .NET Label class is a control used to provide descriptive text for another control on the Form. For example, a Label can be used to add descriptive text for a TextBox control to inform the user about the type of data expected in the control. A Label control is usually paired with another control such as a TextBox or ComboBox. Both the control and associated Label would share a common word in the PowerShell variable name, such as “ServerName”, to easily identify them as a pair.

Usage

In the ScriptoForm PowerShell script file, a control and its associated Label should be instantiated in the Controls region and then defined within the Forms script block. By convention, this control pair should be nested in the $GroupBoxMain GroupBox container.

The steps needed to implement a Label control with a ScriptoForm include:

• Instantiate a Label object to be paired with another control that requires a label in the Controls region.
  Suggested name format: $LabelName | $ControlTypeName
• Assign the required properties to the Label object in the Forms region.

Examples

1. Instantiate a new System.Windows.Forms.TextBox and System.Windows.Forms.Label control pair:

   Controls Region

   $LabelServerName = New-Object -TypeName System.Windows.Forms.Label
   $TextBoxServerName = New-Object -TypeName System.Windows.Forms.TextBox

2. Assign properties to the pair and add them to the GroupBox object:

   Forms Region | $FormMain

   $LabelServerName.Location = New-Object -TypeName System.Drawing.Point(15,15)
   $LabelServerName.AutoSize = $true
   $LabelServerName.Text = "Server Name:"
   $GroupBoxMain.Controls.Add($LabelServerName)

   $TextBoxServerName.Location = New-Object -TypeName System.Drawing.Point(15,35)
   $TextBoxServerName.Size = New-Object -TypeName System.Drawing.Size(($FormWidth - 50),20)
   $TextBoxServerName.TabIndex = 0
   $GroupBoxMain.Controls.Add($TextBoxServerName)

References

Label Class (System.Windows.Forms) | Microsoft Learn
