DataGridView

In a ScriptoForm, the Microsoft .NET DataGridView class is a control that is used to provide a customizable and sortable table for displaying data to the user.

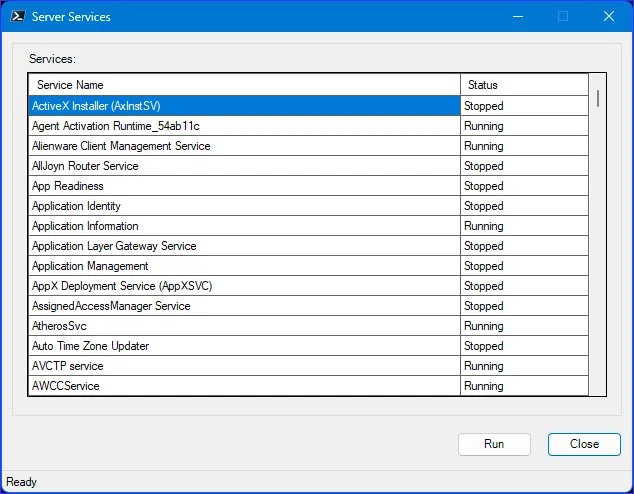

ScriptoForm with example DataGridView control

Usage

Section titled “Usage”
In the ScriptoForm PowerShell script file, a DataGridView control should be instantiated in the Controls region and then defined within the Forms script block. A DataGridView is usually paired with a matching Label control. By convention, this control pair should be nested in the $GroupBoxMain GroupBox (as displayed in the above image) and is added to it rather than the main Form.

The steps needed to implement a DataGridView control with a ScriptoForm include:

  • Instantiate a DataGridView object and an associated Label object in the Controls region.
    Suggested name format: $LabelName | $DataGridViewName
  • Assign the required and any optional properties to the ComboBox object in the Forms region.
  • Populate the DataGridView with a list of items in an appropriate event handler in the Handlers region, as needed.

Examples

Section titled “Examples”
  1. Instantiate a new System.Windows.Forms.DataGridView and System.Windows.Forms.Label control pair:
    Controls Region
    $LabelServices = New-Object -TypeName System.Windows.Forms.Label
    $DataGridViewServices = New-Object -TypeName System.Windows.Forms.DataGridView
  2. Assign properties to the pair and add them to the GroupBox object:
    Forms Region | $ShowMainForm
    $LabelServices.Location = New-Object -TypeName System.Drawing.Point(15,15)
    $LabelServices.AutoSize = $true
    $LabelServices.Text = "Environment:"
    $GroupBoxMain.Controls.Add($LabelServices)


    $DataGridViewServices.Location = New-Object -TypeName System.Drawing.Point(15,35)
    $DataGridViewServices.Size = New-Object -TypeName System.Drawing.Size(($FormWidth - 50),325)
    $DataGridViewServices.TabStop = $false
    $DataGridViewServices.RowTemplate.Height = 20
    $DataGridViewServices.DataBindings.DefaultDataSourceUpdateMode = [System.Windows.Forms.DataSourceUpdateMode]::OnValidation
    $DataGridViewServices.ScrollBars = [System.Windows.Forms.ScrollBars]::Vertical
    $DataGridViewServices.RowHeadersVisible = $false
    $DataGridViewServices.AllowUserToResizeRows = $false
    $DataGridViewServices.ReadOnly = $true
    $DataGridViewServices.AllowUserToAddRows = $false
    $DataGridViewServices.AllowUserToDeleteRows = $false
    $GroupBoxMain.Controls.Add($DataGridViewServices)
  3. Populate the DataGridView object with a list of items:
    Handlers Region | $ButtonRun_Click
    $ButtonRun_Click =
    {
        $ToolStripStatusLabelMain.Text = "Working...please wait"
        $FormMain.Controls | Where-Object {$PSItem -isnot [System.Windows.Forms.StatusStrip]} | ForEach-Object {$PSItem.Enabled = $false}
        $FormMain.Cursor = [System.Windows.Forms.Cursors]::WaitCursor
        [System.Windows.Forms.Application]::DoEvents()


        try
        {
            $Services = Get-Service -ErrorAction SilentlyContinue | Select-Object DisplayName, Status | Sort-Object DisplayName
            if ($Services)
            {
                $DataGridViewServices.ColumnCount = 2
                $DataGridViewServices.ColumnHeadersVisible = $true
                $DataGridViewServices.Columns[0].Name = "Service Name"
                $DataGridViewServices.Columns[1].Name = "Status"


                $DataGridViewServices.Rows.Clear()
                $Services | ForEach-Object {$DataGridViewServices.Rows.Add($PSItem.DisplayName, $PSItem.Status)}


                $ColumnCount = $DataGridViewServices.Columns.Count
                $LastColumnIndex = $ColumnCount - 1
                foreach ($Column in $DataGridViewServices.Columns)
                {
                    if ($Column.Index -eq $ColumnCount - $LastColumnIndex) {$Column.AutoSizeMode = [System.Windows.Forms.DataGridViewAutoSizeColumnMode]::Fill}
                    else {$Column.AutoSizeMode = [System.Windows.Forms.DataGridViewAutoSizeColumnMode]::AllCells}


                    $Column.SortMode = [System.Windows.Forms.DataGridViewColumnSortMode]::NotSortable
                    $Column.SortMode = [System.Windows.Forms.DataGridViewColumnSortMode]::Automatic
                }
                $FormMain.Refresh()
            }
            else
            {
                [void][System.Windows.Forms.MessageBox]::Show(
                    "No services found on this computer.",
                    "Information",
                    [System.Windows.Forms.MessageBoxButtons]::OK,
                    [System.Windows.Forms.MessageBoxIcon]::Information)
            }
        }
        catch
        {
            [void][System.Windows.Forms.MessageBox]::Show(
                $PSItem.Exception.Message + "`n`nPlease contact $SUPPORT_CONTACT for technical support.",
                "Exception",
                [System.Windows.Forms.MessageBoxButtons]::OK,
                [System.Windows.Forms.MessageBoxIcon]::Warning
            )
        }


        $FormMain.Controls | ForEach-Object {$PSItem.Enabled = $true}
        $FormMain.ResetCursor()
        $ToolStripStatusLabelMain.Text = "Ready"
        $StatusStripMain.Update()
    }
